How To Build Your Own DTV Antenna

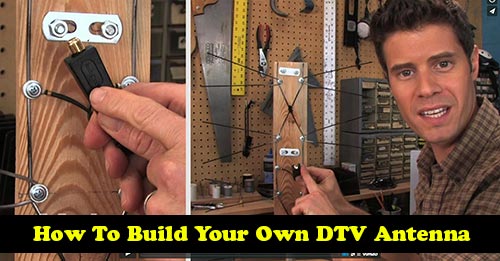

Digital converter box? Check! Great reception? Not so much. John Park shows how to take a fistful of wire coat hangers and make a TV antenna that gives great digital reception.

How To Build Your Own DTV Antenna

In today’s world, digital TV (DTV) antennas can be a fantastic alternative to cable subscriptions, especially if you’re looking to access free-to-air channels. Building your own DTV antenna is an exciting project that’s accessible to tech enthusiasts and DIY novices alike.

With the right tools and materials, you can create an antenna capable of capturing high-definition TV broadcasts. This guide walks you through the process of building a DTV antenna from scratch and answers common questions, giving you everything you need to get started.

Why Build Your Own DTV Antenna?

The main advantage of building a DTV antenna is cost savings. Commercially available antennas can be pricey, while a DIY option costs very little in comparison and provides similar quality. A homemade antenna is also customizable, so you can tweak it to enhance reception based on your location.

With broadcast towers covering extensive regions, a good DTV antenna can pick up dozens of free channels—local news, entertainment, sports, and educational programs—making it a great choice for cord-cutters and minimalists.

Tools and Materials Needed

Before you start, gather the following tools and materials:

• Copper wire or coat hangers (they act as the antenna’s “ears” to receive signals)
• Wood board (as a base for mounting)
• Balun transformer (to convert the antenna signal to coaxial, compatible with most TVs)
• Screws and washers (for securing parts)
• Reflector (optional) (a simple metal screen can improve reception by reflecting signals)
• Drill and wire cutters

Step-by-Step Guide: Building Your Own DTV Antenna

1. Prepare Your Base

• Start by cutting a wooden board to serve as the base. This should be large enough to hold your antenna elements (coat hangers or copper wire) and leave space for mounting to a wall or pole.

2. Shape the Copper Wire Elements

• Cut your copper wire or straighten the coat hangers, then bend each one into a “V” shape, which will act as the antenna’s “ears.” These should be around 14 inches long, spaced about 7 inches apart on the board.

3. Attach the Elements to the Base

• Place each “V” element vertically on the base and secure it with screws and washers. The V shape helps capture both UHF and VHF signals, which many channels use.

4. Connect the Balun Transformer

• A balun transformer is essential for converting the antenna’s signal to a coaxial output that plugs into your TV. Connect the two ends of the balun to the antenna elements, then run the coaxial cable to your TV.

5. Add a Reflector (Optional)

• To boost signal strength, you can add a metal screen or mesh reflector behind the antenna elements. Position it an inch or so from the base board—this will help capture weak signals more effectively.

6. Position the Antenna for Optimal Reception

• Place your antenna in a high spot, like near a window or an exterior wall, to avoid interference. Test various orientations to find the one with the best reception.

Tips for Optimizing Your DIY DTV Antenna

• Experiment with Height: Place the antenna as high as possible for a stronger signal.
• Avoid Obstructions: Metal and electronics can interfere with signals, so keep the antenna away from these.
• Try Outdoor Placement: If possible, installing the antenna outdoors can increase channel reception.
• Use a Signal Amplifier: In areas with weak signals, a signal amplifier can help improve reception.

FAQs: Your DTV Antenna Questions Answered

Q: How many channels can I expect to receive?
A: This depends on your location, the distance to broadcast towers, and the setup of your antenna. In metropolitan areas, it’s common to receive over 30 channels, while rural areas may see fewer.

Q: Will this DIY antenna support HDTV channels?
A: Yes, a DTV antenna can capture HD signals if the broadcasted channels are in HD. Most DTV signals are digital, so your homemade antenna should have no issues with HD quality.

Q: What if I don’t get good reception initially?
A: First, try repositioning the antenna and adjusting its height. Ensure the antenna is aimed in the direction of the nearest broadcasting towers. Adding a reflector or using a signal amplifier can also help.

Q: Can I use this antenna with streaming devices?
A: This antenna is designed for broadcast signals, not for internet-based streaming. However, pairing a digital antenna with streaming devices can give you a broad mix of content options.

Q: How do I troubleshoot if I’m not receiving signals at all?
A: Make sure your TV is set to scan for over-the-air channels and double-check all connections, especially the balun transformer and coaxial cable.

Building a DTV antenna can be both fun and rewarding. Not only do you gain access to free high-definition TV channels, but you also get to engage in a hands-on project that’s relatively simple and inexpensive.
